200A Loadbreak Cap

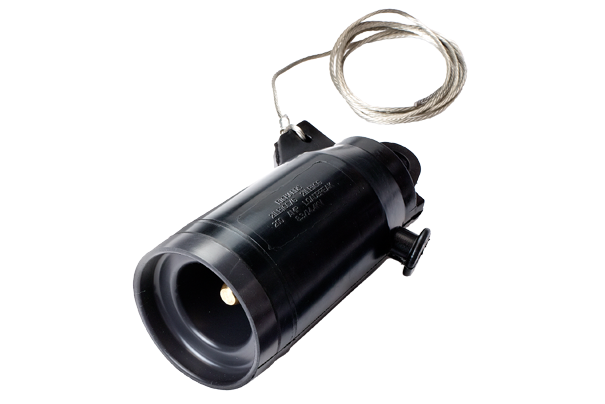

Richards 15 & 25kV 200A Loadbreak Caps provide a way to protect & insulate 15kV or 25kV 200A loadbreak interfaces (IEEE 386 Fig. 5 & 7 respectively). The caps come with a probe and ground lead installed and can be used for temporary or permanent installation.
| IEEE 386 – Industry Minimum Requirements | ||
|---|---|---|
| Voltage Ratings | ||
| Voltage Class, Phase-to-Phase | 15kV | 25kV |
| Maximum Operating Voltage – (phase-to-ground) | 8.3kV | 15.2kV |
| Corona Voltage Level – (partial discharge extinction voltage) | 11kV | 19kV |
| AC Withstand – (1 minute) | 34kV | 40kV |
| Impulse-Withstand Voltage – (BIL) | 95kV | 125kV |
| Resource | Details |
|---|---|
 |
Product Data Sheets 25kV 200A Loadbreak Cap |
|
Product Data Sheets 15kV 200A Loadbreak Insulating Cap |
 |
Catalogs & Product Guides Download a copy of our Medium Voltage Product Catalog for technical details and ordering information. If you don’t find what you are looking for, don’t hesitate to contact our team at the factory. |
