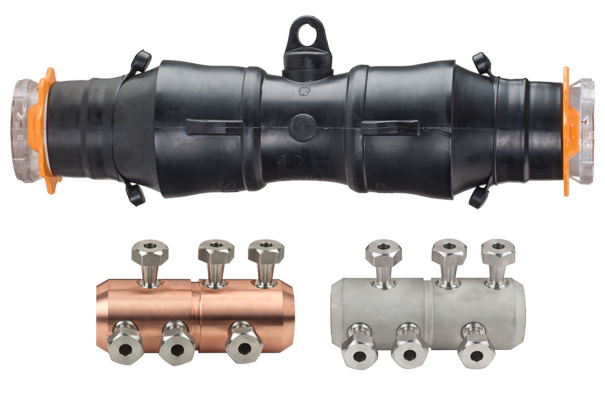

SSC Series – Cold Shrink Splice
The SSC Series from Richards Manufacturing is a cold shrink splicing system for use on medium voltage power cables through 35kV. Equipped with numerous advantages and features, the SSC Series is an innovative, high-performance splicing solution. The Splice is a hybrid design, incorporating the best features of cold shrink and push-on technologies. For example, our Splice provides the benefits of cold shrink—integral jacket seals, range taking capabilities—and yet it also can be furnished with a capacitive test point! Molded entirely from Richards’ cold shrink EPDM materials, the Splice is built for durability in the toughest environments.
| IEEE 404 – Industry Minimum Requirements | |||
|---|---|---|---|
| Voltage Ratings | |||
| Voltage Class, Phase-to-Phase | 15kV | 25kV | 35kV |
| Maximum Operating Voltage – (phase-to-ground) | 8.7kV | 14.4kV | 20.2kV |
| Corona Voltage Level – (partial discharge extinction voltage) | 13kV | 22kV | 30kV |
| AC Withstand – (1 minute) | 35kV | 52kV | 69kV |
| Impulse-Withstand Voltage – (BIL) | 110kV | 150kV | 200kV |
| Current Ratings | |
|---|---|
| Continuous Current | Cable Rated |
| Short-Time Current* | |
* Maximum 40kA for 10 cycles per IEEE Std. 404
