600/900A Deadbreak Junctions

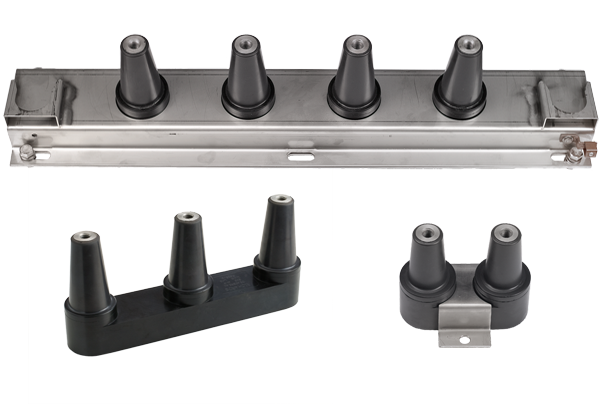

- Available in Aluminum (600A) or Copper (900A)
- Available in 2-way, 3-way, and 4-way configurations
- Includes U-straps or Stainless Steel Bracket for mounting
- Comes in either 4″ spacing or 6″ spacing
Our testing exceeds industry requirements. IEEE Std 386 requires a mandatory Partial Discharge production test and either an Impulse or an AC Withstand test. We run all three tests on all of our products.
All 600/900A Junctions have been designed and tested per the following industry standards:
- ANSI/IEEE Std 386: For Separable Insulated Connector Systems
- IEEE Std 592: For Exposed Semiconducting Shields
| IEEE 386 – Industry Minimum Requirements | |||
|---|---|---|---|
| Voltage Ratings | |||
| Voltage Class, Phase-to-Phase | 15kV | 25kV | 35kV |
| Maximum Operating Voltage – (phase-to-ground) | 8.3kV | 15.2kV | 21.1kV |
| Corona Voltage Level – (partial discharge extinction voltage) | 11kV | 19kV | 26kV |
| AC Withstand – (1 minute) | 34kV | 40kV | 50kV |
| Impulse-Withstand Voltage – (BIL) | 95kV | 125kV | 150kV |
| Continuous Current Ratings | |
|---|---|
| Aluminum | 600A |
| Copper | 900A |
| Short-Time Current Ratings | |
|---|---|
| Aluminum | 25kA, 10c. and 10kA, 3s. |
| Copper | 40kA, 10c. and 10kA, 3s. |
| Resource | Details |
|---|---|
 |
Product Data Sheets 15/25kV 600 and 900A Deadbreak Junctions |
|
Product Data Sheets 35kV 600 and 900A Deadbreak Junctions |
 |
Catalogs & Product Guides Read about why our products are perfect for your Renewable-Energy project. |
 |
Catalogs & Product Guides Download a copy of our Medium Voltage Product Catalog for technical details and ordering information. If you don’t find what you are looking for, don’t hesitate to contact our team at the factory. |
