Overhead Disconnect Switch

Overhead Disconnect Switch

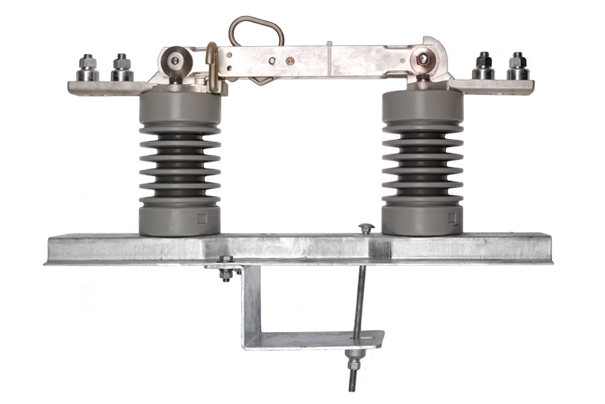

The Richards 91ODS is a 900A-rated, 15kV-Class distribution overhead switch that provides a convenient, flexible straight disconnect point as well as a low-cost live-switching option. This product can be mounted vertically or inverted as a Branch Feeder style switch. Various options are available for mounting hardware. For more technical information, download the 91ODS Product Data Sheet by clicking the “Resources” tab or contact the factory.
15 kV
Maximum Voltage Rating (kV rms) 15.5kV L-L / 8.9kV L-G
Impulse Withstand 110kV BIL
Momentary 40kA
Continuous Current 900A
Resource Details

91ODS

Product Data Sheets

15kV 900A Overhead Disconnect Switch
