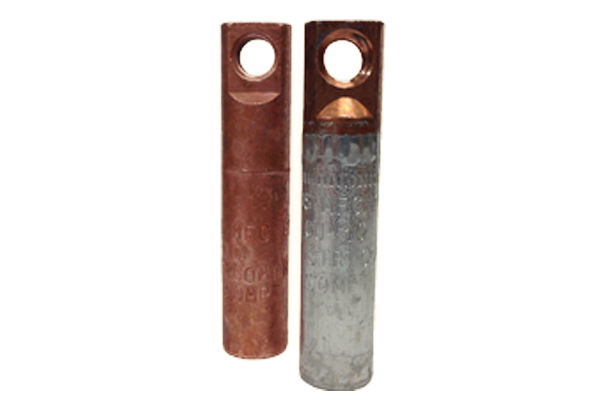

200A Lugs
These lugs are designed for use with 200A Loadbreak and Deadbreak Elbow Connectors. The lugs have a 3/8″-16 threaded hole for assmebly with a probe.
The lug material should be selected based on current carrying requirements and the cable/equipment specifications.
Lugs should be sized appropriately for the cable size and stranding. A sizing chart is available in our Medium Voltage catalog in Table 3 – X. Please note that 200A Elbow Connectors are only available up to 250kcmil stranded conductor.
Cut sheets are available for each of our lugs in the resources tab below.
| Bi-Metallic | Copper | |
| Continuous Current | 200A | 200A |
| Resource | Details |
|---|---|
 |
Product Data Sheets 200A Bi-Metal Lug |
|
Product Data Sheets 200A Copper Lug |
 |
Catalogs & Product Guides Download a copy of our Medium Voltage Product Catalog for technical details and ordering information. If you don’t find what you are looking for, don’t hesitate to contact our team at the factory. |
