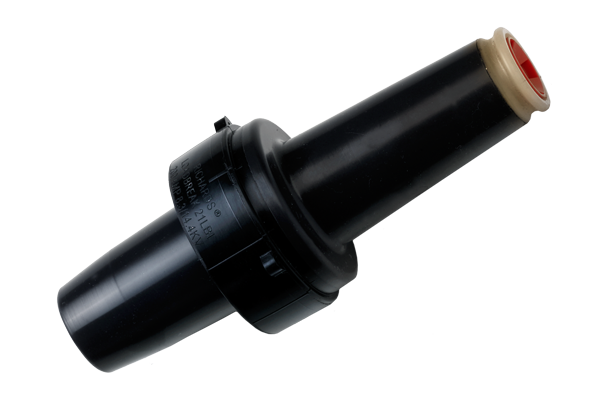

15kV 200A Loadbreak Bushing Insert

The Richards 15kV 200A Loadbreak Bushing Insert is designed, manufactured and tested to acheive superior quality. This product is designed for use with transformers or other equipment having a bushing well interface that is IEEE 386 compliant. This product is tested per the following industry standards:
  • ANSI/IEEE Std 386: For Separable Insulated Connector Systems
  • IEEE Std 592: For Exposed Seminconducting Shields
For more information, please see the resources and related information tabs below.
IEEE 386 – Industry Minimum Requirements
Voltage Ratings
Voltage Class, Phase-to-Phase 15kV
Maximum Operating Voltage – (phase-to-ground) 8.3kV
Corona Voltage Level – (partial discharge extinction voltage) 11kV
AC Withstand – (1 minute) 34kV
Impulse-Withstand Voltage – (BIL) 95kV
Resource Details

21LBI

Product Data Sheets

15kV 200A Loadbreak Bushing Insert

Medium Voltage Catalog

Catalogs & Product Guides

Download a copy of our Medium Voltage Product Catalog for technical details and ordering information. If you don’t find what you are looking for, don’t hesitate to contact our team at the factory.
