Bushing Extender R-800

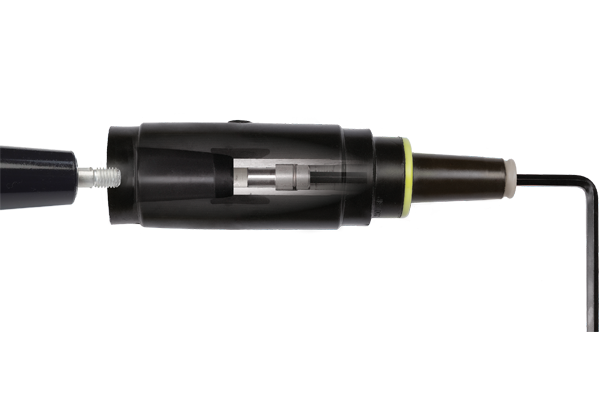

The Richards Bushing Extender R-800 is the only fully integrated 200A Loadbreak Tap and 600/900A Deadbreak Bushing Extender. Like many Richards Medium Voltage innovations, this product takes multiple components and combines them into a single factory molded and tested unit. This not only reduces installation cost and effort, but increases reliability and quality for our customers. The Bushing Extender R-800 is used to transition from an IEEE 386 600/900A Deadbreak interface to an IEEE 386 200A Loadbreak interface. Typical applications include:
- Installation of a 200A Loadbreak Elbow
- Installation of a 200A Surge Arrester
- Installation of an Insulating Cap, removed when testing the interface using approved voltage-indicators
| IEEE 386 – Industry Minimum Requirements | ||
|---|---|---|
| Voltage Ratings | ||
| Voltage Class, Phase-to-Phase | 15kV | 25kV |
| Maximum Operating Voltage – (phase-to-ground) | 8.3kV | 15.2kV |
| Corona Voltage Level – (partial discharge extinction voltage) | 11kV | 19kV |
| AC Withstand – (1 minute) | 34kV | 40kV |
| Impulse-Withstand Voltage – (BIL) | 95kV | 125kV |
| Current Ratings | |
|---|---|
| Continuous Current | 200A |
| Short-Time Current | 10kA, 10c. and 3.5kA, 3s. |
| Resource | Details |
|---|---|
 |
Product Data Sheets 15kV Bushing Extender |
|
Flyers R-800 Bushing Extender |
 |
Catalogs & Product Guides Download a copy of our Medium Voltage Product Catalog for technical details and ordering information. If you don’t find what you are looking for, don’t hesitate to contact our team at the factory. |
